Light Transitions with L*U*V* Color Space

The DMX integration provides professional-grade smooth color transitions using perceptually uniform color space interpolation. This ensures that color changes appear natural and consistent to human vision.

Quick Start

Add a transition parameter to any light service call to enable smooth animations:

# Fade to red over 5 seconds
action: light.turn_on
target:
  entity_id: light.my_dmx_fixture
data:
  rgb_color: [255, 0, 0]
  transition: 5

# Adjust brightness smoothly over 2 seconds
action: light.turn_on
target:
  entity_id: light.my_dmx_fixture
data:
  brightness_pct: 50
  transition: 2

# Change color temperature with 10-second transition
action: light.turn_on
target:
  entity_id: light.my_dmx_fixture
data:
  color_temp_kelvin: 2700
  transition: 10

Supported Fixture Types

Transitions work with all fixture color modes:

  • RGB: Smooth color transitions through L*U*V* color space
  • RGBW: RGB channels use L*U*V*, white channel uses linear interpolation
  • RGBWW: RGB channels use L*U*V*, white channels use linear interpolation
  • Color Temperature: Direct brightness and temperature interpolation
  • CW/WW: Color temperature and brightness interpolation

Why L*U*V* Color Space?

Traditional RGB interpolation creates unnatural color transitions that don't match how humans perceive color changes. Our implementation uses L*U*V* (CIELUV) color space for perceptually uniform transitions.

The Problem with RGB Interpolation

When transitioning from red to green in RGB space:

  • RGB values: (255, 0, 0) → (0, 255, 0)
  • Perceived path: Red → Brown/Yellow → Green
  • Visual result: Unnatural, muddy intermediate colors

The L*U*V* Solution

L*U*V* color space is designed for perceptual uniformity:

  • L* (Lightness): Matches human brightness perception
  • u* and v* (Chromaticity): Uniform color differences
  • Interpolation result: Smooth, natural color transitions

Animation Behavior

RGB Color Changes

Color transitions use L*U*V* interpolation for smooth, natural color paths:

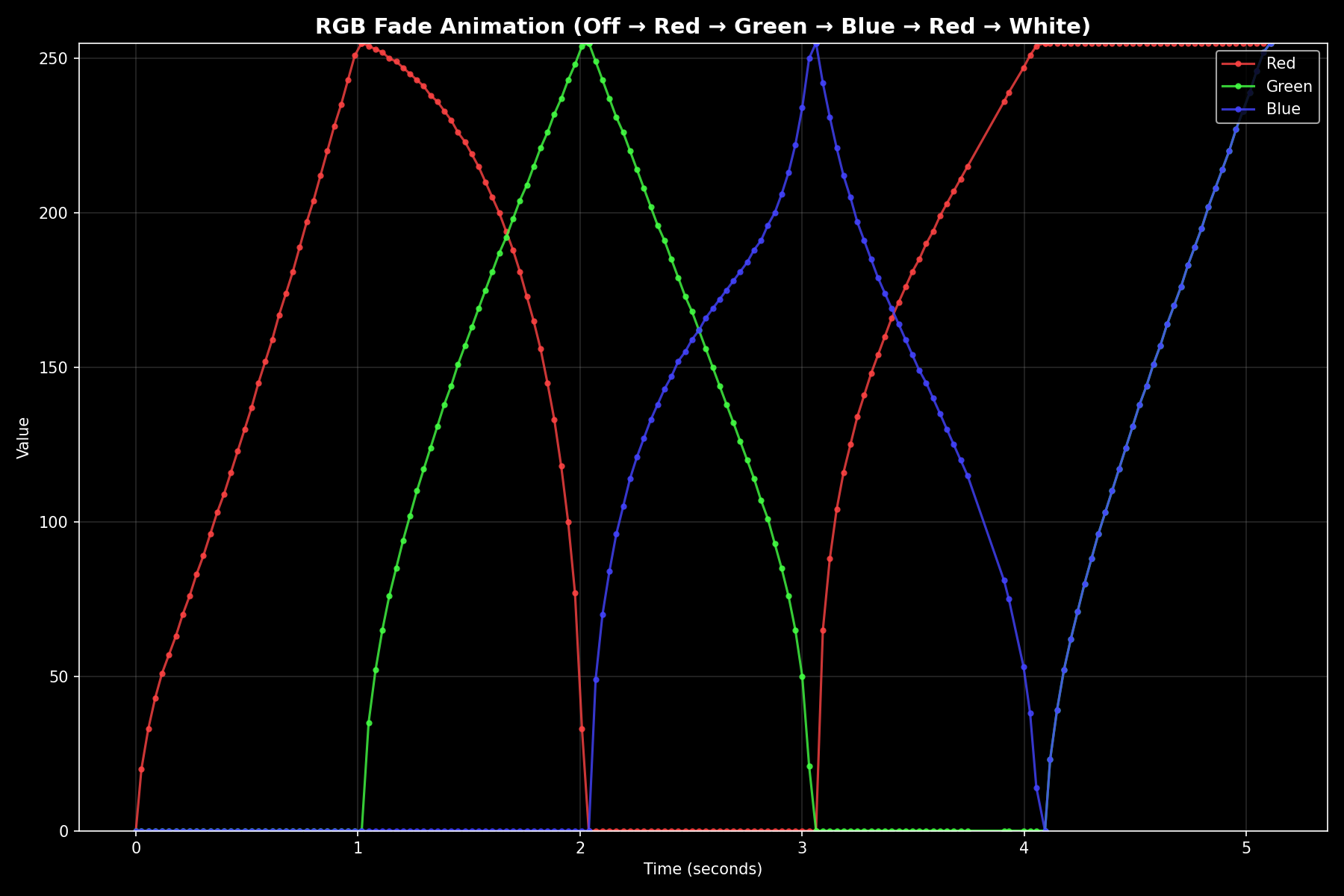

RGB Fade Animation

RGB transitions through L*U*V* color space create smooth color paths

White Light Control

Color temperature and white channel changes use direct interpolation:

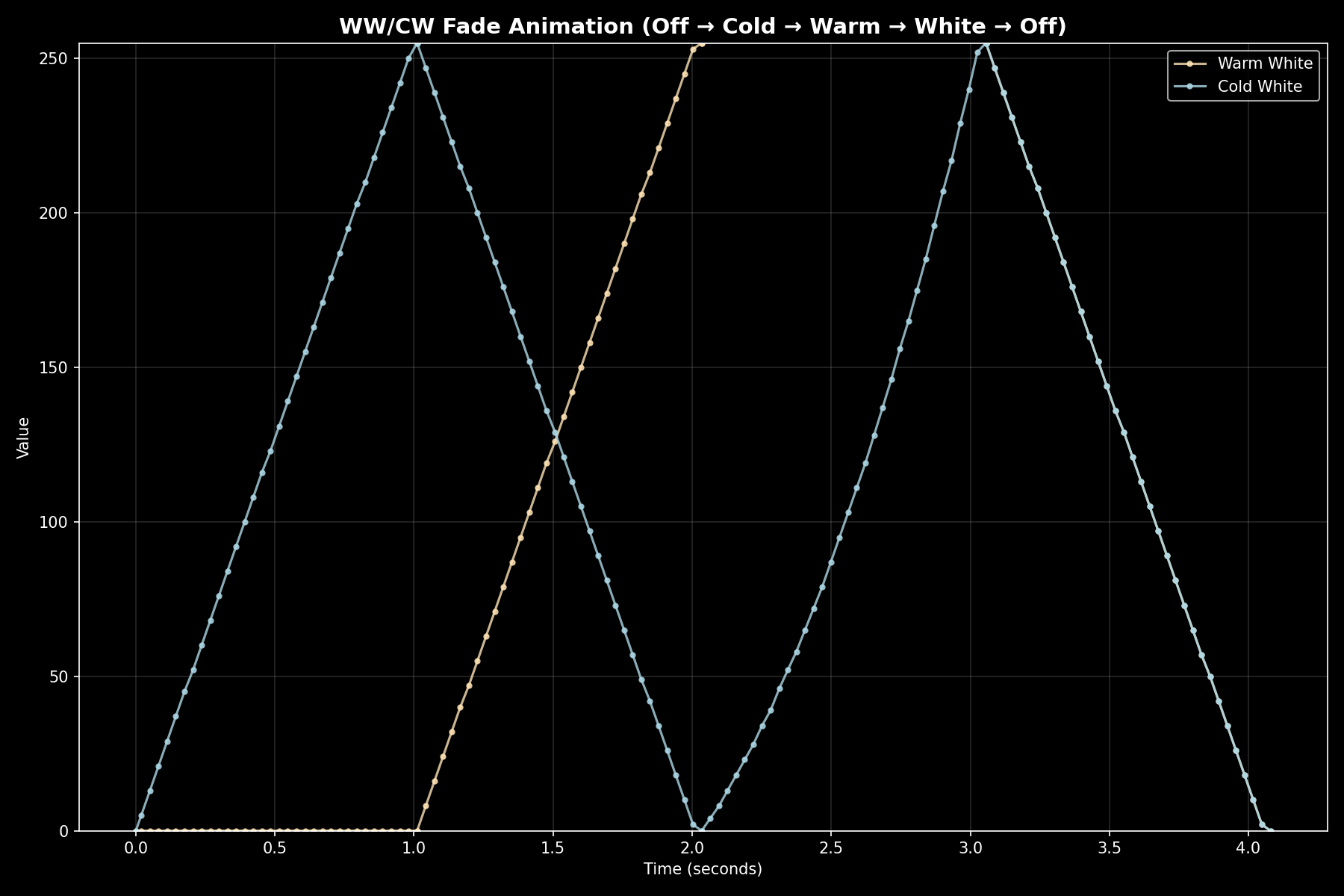

WW/CW Fade Animation

Warm/cold white transitions interpolate temperature and brightness

Mixed RGBWW Fixtures

RGB and white channels are handled separately to maintain color accuracy:

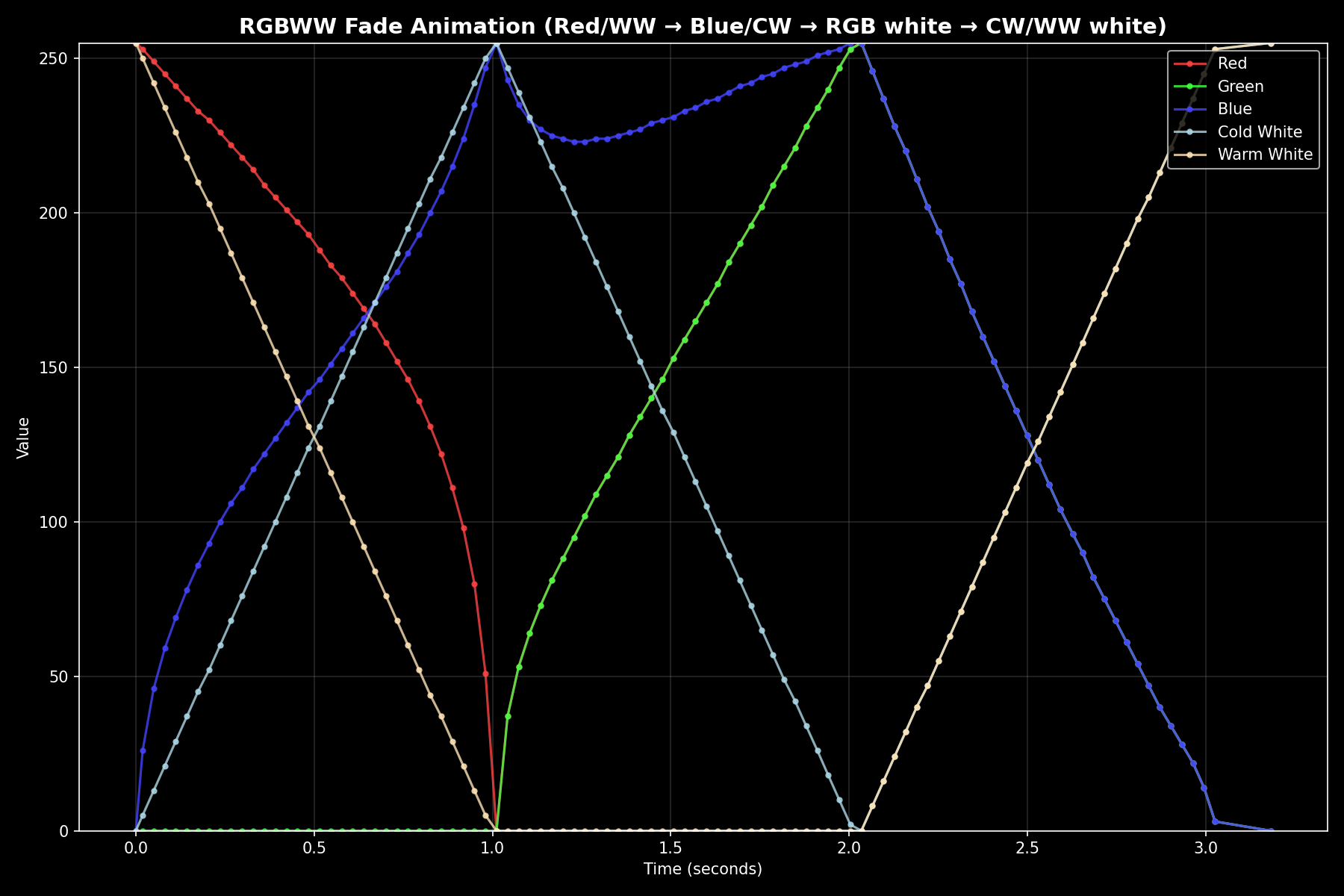

RGBWW Fade Animation

RGBWW fixtures transition RGB through L*U*V* while white channels interpolate directly
